Passive Airflow Acceleration
Technical specifications and patent-pending architectural deep-dive for high-density AI clusters.
architecture System Architecture
1. Velocity Boot

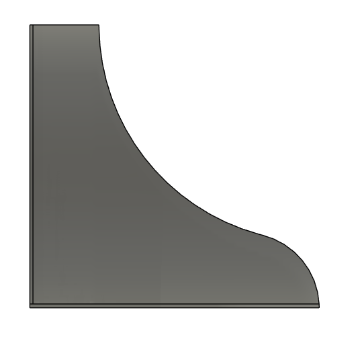

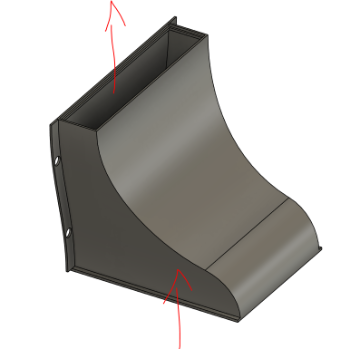

Precision-molded intake curve captures floor tile air with zero turbulence, converting static pressure into directed velocity.
2. Extender Modules
Vertical stackable units allow for customizable height distribution, ensuring the top 5U receives the same airflow as the bottom.
view_in_ar Modular Design Geometry
Stackable Efficiency

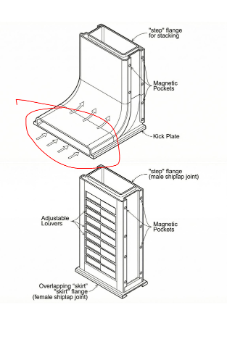

The "male-female shiplap joint" (shown in figure) allows for tool-less installation and hermetic sealing between modules. This eliminates bypass leakages common in traditional curtains.
- check_circle Magnetic Pockets for instant attachment to rack frames.
- check_circle Adjustable Louvers for localized airflow Tuning.
fluid Fluid Dynamic Optimization
The "Kick Plate" integration ensures proper alignment with standard 600mm floor tiles while maintaining the necessary "Boot" radius to minimize back-pressure. This geometry maintains an airflow velocity increase of **2.5x** compared to unmanaged floor tiles.
